Patch Antenna

Patch antennas are a crucial technology in modern wireless communication due to their low profile, ease of fabrication, and versatility. Despite some limitations in bandwidth and gain, their advantages in terms of size, weight, and integration make them suitable for a wide range of applications, from consumer electronics to aerospace systems. For more information, you can Call Us.

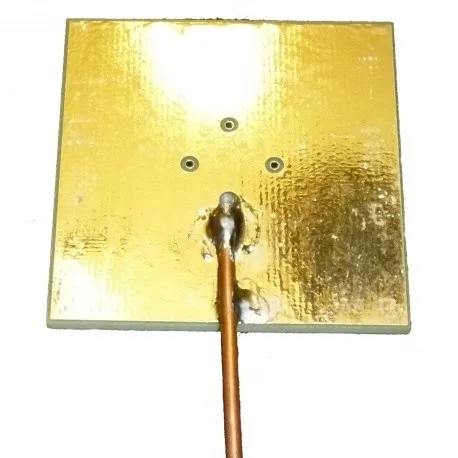

A patch antenna, also known as a microstrip antenna, is a type of radio antenna with a low profile, which can be mounted on a flat surface. It consists of a flat rectangular or circular patch of metal, mounted over a larger piece of metal called a ground plane. This configuration is known for its simplicity, ease of fabrication, and integration with printed circuit boards (PCBs), making it popular in various wireless communication applications.

Types of Patch Antennas

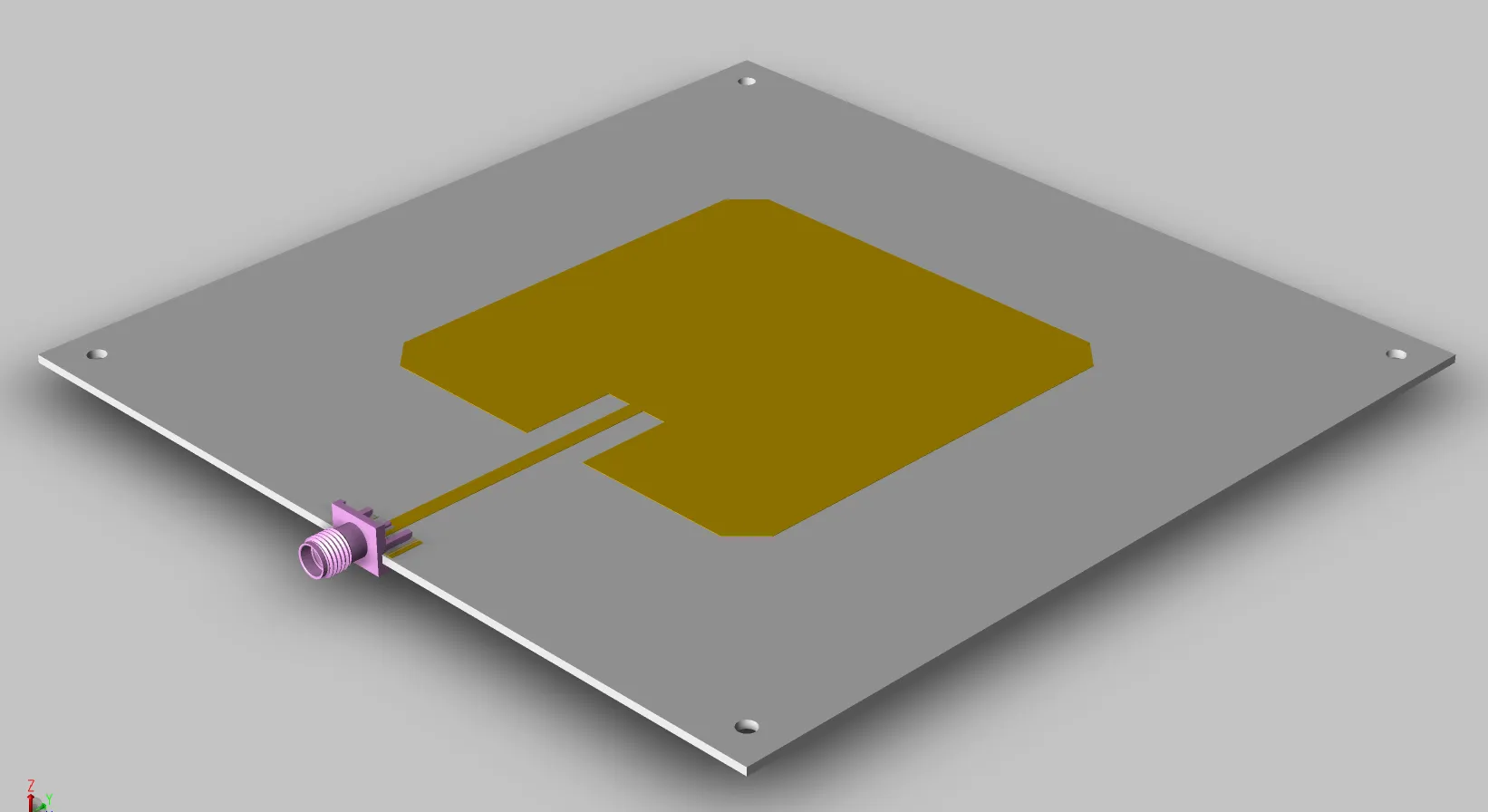

Rectangular Patch Antenna: The most common type, simple to design and analyze.
Circular Patch Antenna: Provides circular symmetry, useful for specific polarization and pattern requirements.
Dual-Band and Multi-Band Patch Antennas: Designed to operate at multiple frequencies by incorporating multiple patches or using slotted patches.
Array Configuration: Multiple patch antennas can be arranged in an array to achieve higher gain and more complex radiation patterns.
